Soffit System

VERSATEX Soffit System – We help you breathe. At VERSATEX, we continually look for new ways to help our builders reduce labor and improve aesthetics during installation. This led to the design and development of the first ever Vented PVC Soffit System.

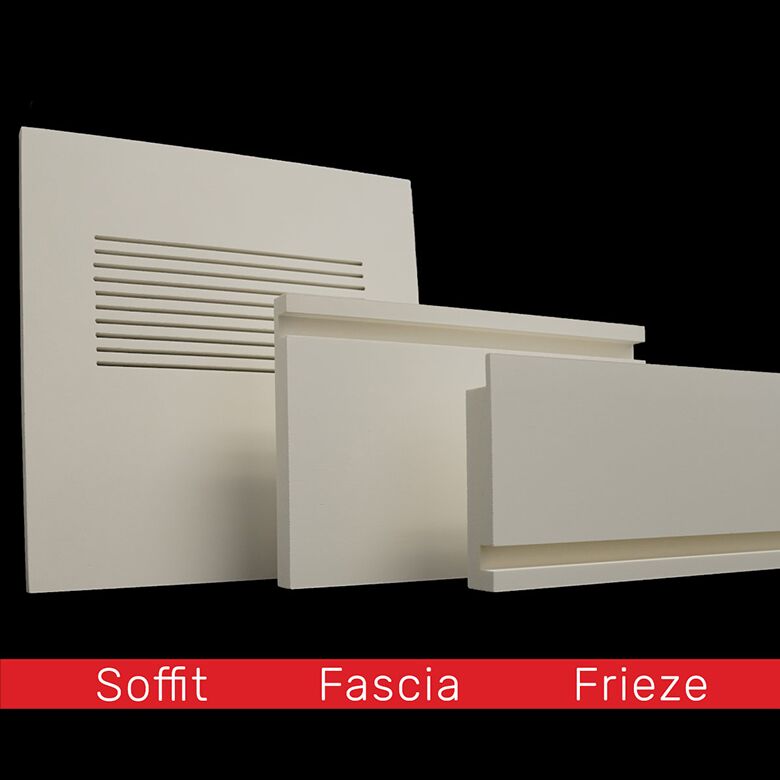

Soffit System board profiles include:

Notched Fascia

Frieze Board

Looking for Samples?

We're currently offering free samples for the following Soffit System components:*

Product

Vented Soffit BoardVented Soffit Board

Clear

*Samples are available in limited offerings. Always check our Options & Dimensions area for product sizes.

Looking for Soffit?

More Product Photos

Product Information

Options & Dimensions

Soffit	Lengths
Actual Sizes	Vented	Solid
	18’	18’
1/2” x 12”
1/2” x 16”
1/2” x 24”

Available in smooth only
Available in “Smartpack” quanitites

Notched Fascia		Lengths and Finish
Sizes			Smooth	Timber Ridge
Nominal	Actual		18’	18’
1” x 8”	3/4” x 7 1/4”

Custom lengths and widths available in “Smartpack” quanitites

Frieze Board		Lengths and Finish
Sizes			Smooth	Timber Ridge
Nominal	Actual		18’	18’
5/4” x 6”	1” x 5 1/2”

Custom lengths and widths available in “Smartpack” quanitites

Soffit	Lengths
Actual Sizes	Vented	Solid
	18’	18’
1/2” x 12”
1/2” x 16”
1/2” x 24”

Available in smooth only
Available in “Smartpack” quanitites

Notched Fascia		Lengths and Finish
Sizes			Smooth	Timber Ridge
Nominal	Actual		18’	18’
1” x 8”	3/4” x 7 1/4”

Custom lengths and widths available in “Smartpack” quanitites

Frieze Board		Lengths and Finish
Sizes			Smooth	Timber Ridge
Nominal	Actual		18’	18’
5/4” x 6”	1” x 5 1/2”

Custom lengths and widths available in “Smartpack” quanitites

While we do still manufacture solid soffit, VERSATEX offers the only vented system in the industry.
This Vented Soffit has a 8/4 repeating vent pattern that provides 10 square inches of free air space per lineal foot. Plus, vents are cut in a manner to prevent nesting insect infiltration, making screening an option and not a requirement.
Add the notched fascia and frieze board and you have an easy-to-install and efficient system.

Questions About Installation?
View installation guides for General Soffit Installation, Soffit Installation, and VERSATEX Installation.

Warranty Coverage
At VERSATEX, products are created from cellular PVC in a state-of-the-art manufacturing facility with the highest level of quality and feature a fully-transferable limited lifetime warranty. Regarding Canvas Series Products, VERSATEX warrants to the Consumer/Purchaser that the film laminate will not discolor beyond the manufacturer’s tolerances (≤ greyscale 3 – ISO 105-A02) for 12 years from the date of original purchase. Furthermore, VERSATEX warrants to the Consumer/Purchaser that the application of the film onto the underlying PVC substrate be free from manufacturing defects for 12 years from the date of original purchase. See full warranty details.
