VERSAWRAP Column Wraps

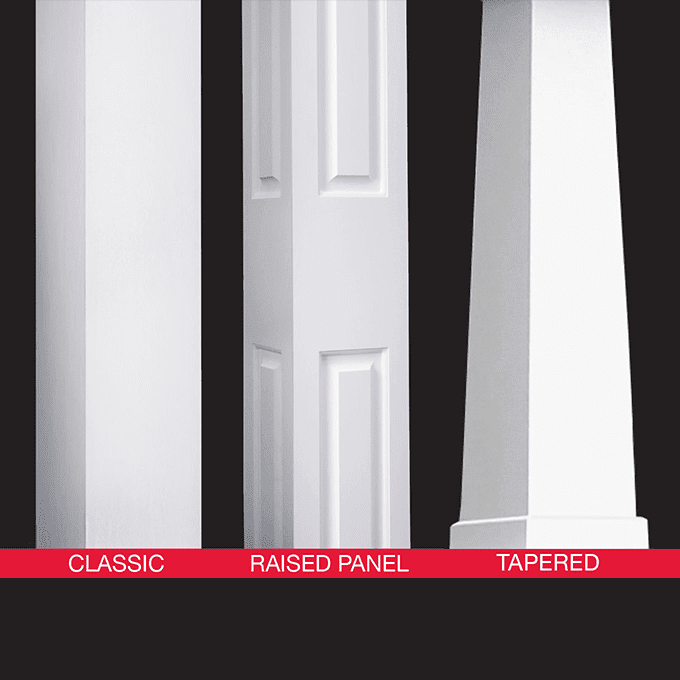

One-Piece VERSAWRAP

Our Classic and Raised Panel column wrap styles are created from a single piece of VERSATEX cellular PVC with three pre-mitered grooves that fold around the structural post and lock together with a friction-fit lockmiter joint. Just apply your PVC glue, fold the VERSAWRAP around your structural column, secure in place, peel the tape, and walk away.

Classic VERSAWRAP
Nominal Size	Actual Inside	Actual Outside	8’6”	10’	12’
4 x 4	3 3/4” x 3 3/4”	4 3/4” x 4 3/4”
6 x 6	5 3/4” x 5 3/4”	6 3/4” x 6 3/4”
8 x 8	8 1/2” x 8 1/2”	9 1/2” x 9 1/2”
12 x 12	9 3/4” x 9 3/4”	11 1/4” x 11 1/4”

• Special 10″ Classic column wraps available (minimum quantities apply)

Raised Panel VERSAWRAP
Nominal Size	Actual Inside	Actual Outside	8’6”	10’
6 x 6	5 3/4” x 5 3/4”	6 3/4” x 6 3/4”
8 x 8	8 1/2” x 8 1/2”	9 1/2” x 9 1/2”

• Raised Panels start 16 1/2″ from the bottom with a railing gap from 30 3/4″ to 38 1/2″. Clearance above the top panel measures 8 3/4″.
• For best aesthetic results in Raised Panel column wrap applications, painting is recommended to prevent dirt accumulation where panel is milled into product.

VERSAWRAP Classic & Raised Panel Accessories

VERSAWRAP Accent Wraps
Nominal Sizes	Actual Inside Dimension	Actual Outside Dimension
4 x 4 x 10″	4 3/4” x 4 3/4” x 10”	5 3/4” x 5 3/4” x 10”
6 x 6 x 10″	6 3/4” x 6 3/4” x 10”	7 3/4” x 7 3/4” x 10”
8 x 8 x 10″	9 1/2” x 9 1/2” x 10”	10 1/2” x 10 1/2” x 10”

• Nominal 6” x 6” x 10’ Accent Wraps available in “UNIT” quantities.

VERSAWRAP Trim Kits
4” Wraps	6” Wraps	8” Wraps
Base Moulding Kit	Base Moulding Kit	Base Moulding Kit
Bed Moulding Kit	Bed Moulding Kit	Bed Moulding Kit
Bed Moulding Kit XL	Bed Moulding Kit XL	Bed Moulding Kit XL
4″ Crown Moulding Kit	4″ Crown Moulding Kit	4″ Crown Moulding Kit
4″ Crown Moulding Kit XL	4″ Crown Moulding Kit XL	4″ Crown Moulding Kit XL

• All kits are pre-cut to length, mitered, and sold in bags with Hoffman Dovetail Connectors for easy assembly and a snug fit around the outside dimension of specific sized column wraps.
• XL kits are cut longer to fit around outside dimension of Accent Wraps.
• All Crown Moulding Kits are made with 4” Crown Mould profile (3 5/8” actual).

VERSAWRAP Post Caps

Actual Inside Dimensions

4 3/4” x 4 3/4”

6 3/4” x 6 3/4”

9 1/2” x 9 1/2”

Four-Piece Tapered VERSAWRAP

Our four-piece Tapered column wrap provides the same convenience of the one-piece VERSAWRAP for a craftsman style project. Four pre-cut panels each have friction-fit miter lock joints to eliminate the calculations and cuts required to ensure the right angle for each panel.

Actual Sizes	5′ Length	6′ Length
12″ base / 8″ cap
16″ base / 12″ cap

• Each Tapered column wrap includes squaring corners for fastening and 3 1/2″ optional decorative skirt accessories.

• The unique design of the VERSAWRAP column wrap line features pre-mitered grooves and friction fit joints. The joints are inter-locking with a unique design to allow for easy alignment and additional surface area for bonding. Plus, similar to our one-piece corners, there are no seams exposed that can collect dust and dirt after installing your column wrap.
• Now, instead of cutting four individual joints or miters in the field, you can wrap smarter, with VERSAWRAP column wraps. No more field cutting and struggling to match seams. The VERSAWRAP line includes Classic and Raised Panel designs as a one-piece wrap with accessory options, and a four-piece Tapered design that includes Craftsman-style accessories.

Questions About Installation?
View installation guides for Tapered Column Wrap,  VERSATEX Installation, and VERSAWRAP Installation.

Warranty Coverage
At VERSATEX, products are created from cellular PVC in a state-of-the-art manufacturing facility with the highest level of quality and feature a fully-transferable limited lifetime warranty. Regarding Canvas Series Products, VERSATEX warrants to the Consumer/Purchaser that the film laminate will not discolor beyond the manufacturer’s tolerances (≤ greyscale 3 – ISO 105-A02) for 12 years from the date of original purchase. Furthermore, VERSATEX warrants to the Consumer/Purchaser that the application of the film onto the underlying PVC substrate be free from manufacturing defects for 12 years from the date of original purchase. See full warranty details.
