Trimboard

PVC Trim – It’s what we do best!. At VERSATEX, we are dedicated to cellular PVC trim and are leaders in innovation, quality, and technical assistance in the building industry. For you, that translates to thickness tolerances that are half the industry norm and the continued development of revolutionary products. You also receive the best technical assistance available, with on-site engineers, installation information, and a best practices manual. Because PVC trim is what we do best, we offer unrivaled product quality, service, and expertise.

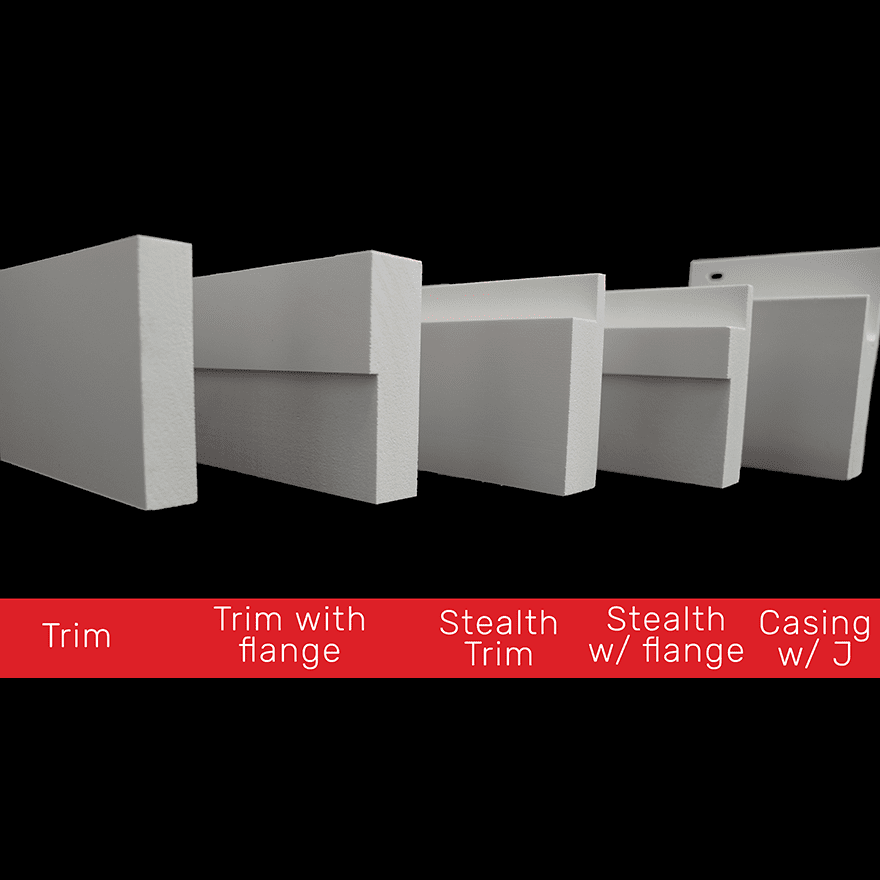

PVC Board profiles include:

Trimboard

Trim w/ Flange

Standard Stealth

Stealth w/ Flange

Stealth Casing w/ J-Channel

Looking for Samples?

We're currently offering free samples for the following Trimboard variations:*

Trimboard Profile

TrimboardTrimboardStandard StealthStandard StealthStealth w/ FlangeStealth w/ Flange

Thickness

1” (actual 3/4”)1” (actual 3/4”)5/4” (actual 1”)5/4” (actual 1”)

Finish

Smooth FinishSmooth FinishTimber RidgeTimber Ridge

Clear

*Samples are available in limited offerings. Always check our Options & Dimensions area for product sizes.

Looking for Trimboard?

More Product Photos

Product Information

Options & Dimensions

Trimboard		Thickness
Width		5/8	1	5/4	6/4	8/4
Nominal	Actual	(actual 5/8″)	(actual 3/4″)	(actual 1″)	(actual 1 1/4″)	(actual 1 1/2″)
2	1 1/2″
3	2 1/2″
4	3 1/2″
5	4 1/2″
6	5 1/2″
8	7 1/4″
10	9 1/4″
12	11 1/4″
16	15 1/4″

5/8″, 1″, and 5/4″ available in standard 12′, 18′ and 20′ lengths; 6/4″ and 8/4″ available in standard 18′ lengths
Custom lengths and widths available in “Smartpack” quantities
Most thicknesses can be ordered reversible – Smooth/Timber Ridge or Smooth/Smooth
8/4” is subject to extended lead times
Sizes also available with Peel ‘n Neat protective film applied; check with your local retailer for availability.

Trim with Flange		Length
Nominal Sizes	Actual Sizes	18’
5/4 x 4	1” x 3 1/2”
5/4 x 6	1” x 5 1/2”

Stealth Trim		Length
Nominal Sizes	Actual Sizes	18’
5/4 x 4	1” x 3 1/2”
5/4 x 6	1” x 5 1/2”
5/4 x 8	1” x 7 1/4”

Custom lengths and widths available in “Smartpack” quantities.

Stealth with Flange		Length
Nominal Sizes	Actual Sizes	18’
5/4 x 4	1” x 3 1/2”
5/4 x 6	1” x 5 1/2”

Stealth Casing with J-Channel		Length
Nominal Sizes	Actual Sizes	18’
5/4 x 4	1” x 3 1/2”
5/4 x 6	1” x 5 1/2”

Trimboard		Thickness
Width		5/8	1	5/4	6/4	8/4
Nominal	Actual	(actual 5/8″)	(actual 3/4″)	(actual 1″)	(actual 1 1/4″)	(actual 1 1/2″)
2	1 1/2″
3	2 1/2″
4	3 1/2″
5	4 1/2″
6	5 1/2″
8	7 1/4″
10	9 1/4″
12	11 1/4″
16	15 1/4″

5/8″, 1″, and 5/4″ available in standard 12′, 18′ and 20′ lengths; 6/4″ and 8/4″ available in standard 18′ lengths
Custom lengths and widths available in “Smartpack” quantities
Most thicknesses can be ordered reversible – Smooth/Timber Ridge or Smooth/Smooth
8/4” is subject to extended lead times
Sizes also available with Peel ‘n Neat protective film applied; check with your local retailer for availability.

Trim with Flange		Length
Nominal Sizes	Actual Sizes	18’
5/4 x 4	1” x 3 1/2”
5/4 x 6	1” x 5 1/2”

Stealth Trim		Length
Nominal Sizes	Actual Sizes	18’
5/4 x 4	1” x 3 1/2”
5/4 x 6	1” x 5 1/2”
5/4 x 8	1” x 7 1/4”

Custom lengths and widths available in “Smartpack” quantities.

Stealth with Flange		Length
Nominal Sizes	Actual Sizes	18’
5/4 x 4	1” x 3 1/2”
5/4 x 6	1” x 5 1/2”

Stealth Casing with J-Channel		Length
Nominal Sizes	Actual Sizes	18’
5/4 x 4	1” x 3 1/2”
5/4 x 6	1” x 5 1/2”

Trim is available in two finishes, Smooth Matte and Timber Ridge.
Our PVC trimboards are available in either Smooth/Smooth or Smooth/Timber Ridge.
Timber Ridge is a natural surface texture complimenting fiber cement and cedar.
Our PVC trim is cut with a proprietary system to keep the edges clean and dimensionally accurate with true 90° angles.
We offer a cut-to-length and cut-to-width trim option in half-unit quantities, saving money by eliminating unnecessary waste.

Questions About Installation?
View installation guides for VERSATEX Flood Solution Installation and VERSATEX Installation.

Warranty Coverage
At VERSATEX, products are created from cellular PVC in a state-of-the-art manufacturing facility with the highest level of quality and feature a fully-transferable limited lifetime warranty. Regarding Canvas Series Products, VERSATEX warrants to the Consumer/Purchaser that the film laminate will not discolor beyond the manufacturer’s tolerances (≤ greyscale 3 – ISO 105-A02) for 12 years from the date of original purchase. Furthermore, VERSATEX warrants to the Consumer/Purchaser that the application of the film onto the underlying PVC substrate be free from manufacturing defects for 12 years from the date of original purchase. See full warranty details.
