Xceed VZDROP LOCK
CAD2

XCEED Siding
by VERSATEX

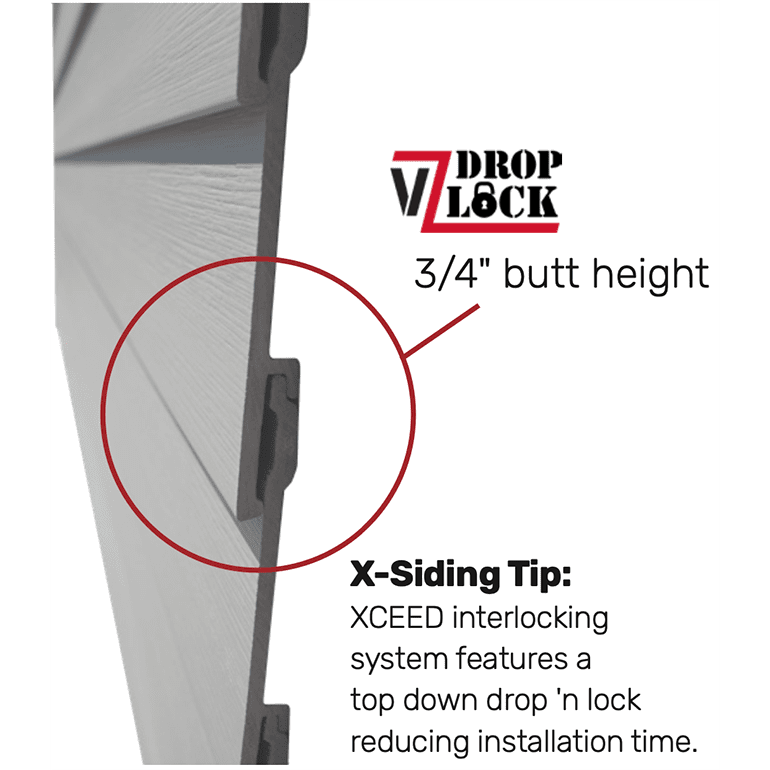

Xceeding your Xpectations!  Our XCEED lap siding has exceptional features, such as a unique VZ Drop-Lock that simplifies installation, an IR heat reflective capstock and 16′-0″ panels that reduce butt joints. Similar to vinyl siding, but with butt joints secured by a nail hem bracket and screws for a better on the wall appearance. Trim options include 1” pocketed stealth corners, stealth trim, and custom frieze board and custom starter/ skirtboard. S4S trim is ideal due to the soft, textured appearance of XCEED. XCEED is unlike traditional wood sidings that crack, check, and cup over time due to moisture, as well as fiber cement and wood composite sidings that still require paints for protection – just high aesthetic value with little to no maintenance ever required.

VERSATEX has been dedicated to superior quality and performance for over 20 years. In that tradition, XCEED Siding by VERSATEX has been carefully developed and tested and is backed by a Limited Lifetime Warranty. XCEED is a beautiful and elegant addition to a home’s exterior, dormers, or gables. Available in a 4 1/2” reveal lap, in six next generation UV resistant colors.

*Only launching in New England and New York

Download Brochure

* Brochure includes all color profiles

MADE IN AMERICA

Looking for ?

Get In Touch

More Product Photos

Versatex Farmhouse Example Color Centennial stone
Centennial Stone
Versatex Farmhouse Example Color Heritage Blue
Heritage Blue
Versatex Farmhouse Example Color Mojave Tan
Mojave Tan
Versatex Farmhouse Example Color monument grey
Monument Grey
Versatex Farmhouse Example Color Sequoia Green
Sequoia Green
Versatex Farmhouse Example Color vail white
Vail White
Versatex New England Example Color Centennial Stone
Centennial Stone
Versatex New England Example Color Heritage Blue
Heritage Blue
Versatex New England Example Color MojaveTan
Mojave Tan
Versatex New England Example Color Monument Grey
Monument Grey
Versatex New England Example Color SequoiaGreen
Sequoia Green
Versatex New England Example Color VailWhite
Vail White
Versatex New England Example Color Heritage Blue
Heritage Blue

Explore All XCEED Products

Standard Stealth
Standard Stealth
Tapered PVC Starter
Tapered PVC Starter
Stealth w/ Flange
Stealth w/ Flange
Stealth Corner
Stealth Corner
XCEED Band Board
XCEED Band Board
XCEED Skirtboard
XCEED Skirtboard
XCEED Frieze Board
XCEED Frieze Board
Galvanized Metal Starter Kit
Galvanized Metal Starter

Product Information

  • Options & Dimensions

  • Profile

    4 1/2″ Reveal x 16’
    • 16’ lengths allow for a faster, more efficient install, and reduces butt joints.
    • XCEED panel factory ends ensure a 16” on center nail spacing minimizing cuts and waste.
    • Thicker than traditional vinyl siding-greater impact resistance, improved overall strength and an authentic wood siding appearance.
    • Ease of installation – Once the first course is level, set the next panel into the VZ Drop-Lock and move to the next course.
    • Colors developed using a ASA weatherable and HBU-resistant colored capstock.
    • Water resistant-XCEED Siding can’t swell, bow, warp, or rot.
    XCEED Siding Accessories to compliment your siding

    Stealth Trim Profiles

    Product Nominal Actual Smooth (S4S) Embossed
    Standard Stealth 5/4 x 4 x 18′ 1″ x 3 1/2″ x 18′
    Standard Stealth 5/4 x 6 x 18′ 1″ x 5 1/2″ x 18′
    Stealth w/ Flange 5/4 x 4 x 18′ 1″ x 3 1/2″ x 18′
    Stealth w/ Flange 5/4 x 6 x 18′ 1″ x 5 1/2″ x 18′
    XCEED Frieze Board 5/4 x 4 x 18′ 1″ x 3 1/2″ x 18′
    XCEED Frieze Board 5/4 x 6 x 18′ 1″ x 5 1/2″ x 18′
    XCEED Band Board 1 x 6 x 18′ 3/4″ x 5 1/2″ x 18′
    XCEED Band Board 1  x 8 x 18′ 3/4″ x 7 1/4″ x 18′
    XCEED Skirtboard 1 x 4 x 18′ 3/4″ x 3 1/2″ x 18′
    XCEED Skirtboard 1 x 6 x 18′ 3/4″ x 5 1/2″ x 18′

    X-Siding Note: Custom widths available upon request with extended lead times. Skirtboard available in a nominal 5/4 (1″ actual) thickness

    Stealth Corner Profiles

    Product Nominal Actual Smooth (S4S) Embossed
    Standard Stealth 5/4 x 4 x 18′ 1″ x 3 1/2″ x 18′
    Standard Stealth 5/4 x 6 x 18′ 1″ x 5 1/2″ x 18′
    Standard Stealth 5/4 x 8 x 18′ 1″ x 7 1/4″ x 18′

    X-Siding Note: All Corners available in 10′, 20′ and custom 22′ lengths.

    Additional Profiles

    Product Actual Smooth (S4S) Embossed
    Tapered PVC Starter 3/4″ x 4 1/2″ x 18′ NA
    Galvanized Metal Starter 28 ga. x 10′ NA

    XCEED Nail Hem Bracket & Screw Set

    50 Pre-drilled stainless Steel Brackets
    220 Stainless Steel Mounting Screws
    • Bracket & Screw System MUST be used at every butt joint
    • Estimated coverage area is 6 siding squares/box
    • Nail Hem Brackets required to maintain warranty
  • Details

  • • 16’ lengths to allow for faster installs, reduce butt joints and have less waste.
    • Siding produced to minimize cuts and waste due to nail slot locations. (Factory butt joints always ensure the 16” on center nail placement)
    • More rigid and durable than traditional vinyl siding-Increased resistance to fire, wind and hail
    • Lighter and less brittle than fiber cement siding-Approved for ground contact and no carcinogens when cutting
    • Easy to install – Once the first course is level, installation is simple. Set the next panel into lock and move on.
    • Colors developed using a ASA weather-able and HBU-resistant cap stock.

  • Installation & Warranty

  • Questions About Installation?
    View installation guide

    Warranty Coverage
    At VERSATEX, products are created from cellular PVC in a state-of-the-art manufacturing facility with the highest level of quality and feature a fully-transferable limited lifetime warranty. Regarding Canvas Series Products, VERSATEX warrants to the Consumer/Purchaser that the film laminate will not discolor beyond the manufacturer’s tolerances (≤ greyscale 3 – ISO 105-A02) for 12 years from the date of original purchase. Furthermore, VERSATEX warrants to the Consumer/Purchaser that the application of the film onto the underlying PVC substrate be free from manufacturing defects for 12 years from the date of original purchase. See full warranty details.

  • Reference Documents

  • Installation Guides
    XCEED Siding Installation Guide

    Technical Resources
    ACRI-SHIELD MAX 739-10 Series
    Permanizer 769-10 Series

    CADs
    4 1/2″ XCEED Tapered Starter
    4″ Stealth Trim
    4″ XCEED Frieze Board
    4″ XCEED Skirtboard
    4” Stealth Corner
    6” Stealth Corner
    6” Stealth Trim
    6” XCEED Band Board
    6” XCEED FRIEZE BOARD
    6” XCEED Skirtboard
    8” XCEED Band Board
    XCEED Galvanized Metal Starter
    XCEED Lap Siding
    XCEED Nail Hem Bracket

    Literature
    XCEED Siding Brochure

Profile

4 1/2″ Reveal x 16’
  • 16’ lengths allow for a faster, more efficient install, and reduces butt joints.
  • XCEED panel factory ends ensure a 16” on center nail spacing minimizing cuts and waste.
  • Thicker than traditional vinyl siding-greater impact resistance, improved overall strength and an authentic wood siding appearance.
  • Ease of installation – Once the first course is level, set the next panel into the VZ Drop-Lock and move to the next course.
  • Colors developed using a ASA weatherable and HBU-resistant colored capstock.
  • Water resistant-XCEED Siding can’t swell, bow, warp, or rot.
XCEED Siding Accessories to compliment your siding

Stealth Trim Profiles

Product Nominal Actual Smooth (S4S) Embossed
Standard Stealth 5/4 x 4 x 18′ 1″ x 3 1/2″ x 18′
Standard Stealth 5/4 x 6 x 18′ 1″ x 5 1/2″ x 18′
Stealth w/ Flange 5/4 x 4 x 18′ 1″ x 3 1/2″ x 18′
Stealth w/ Flange 5/4 x 6 x 18′ 1″ x 5 1/2″ x 18′
XCEED Frieze Board 5/4 x 4 x 18′ 1″ x 3 1/2″ x 18′
XCEED Frieze Board 5/4 x 6 x 18′ 1″ x 5 1/2″ x 18′
XCEED Band Board 1 x 6 x 18′ 3/4″ x 5 1/2″ x 18′
XCEED Band Board 1  x 8 x 18′ 3/4″ x 7 1/4″ x 18′
XCEED Skirtboard 1 x 4 x 18′ 3/4″ x 3 1/2″ x 18′
XCEED Skirtboard 1 x 6 x 18′ 3/4″ x 5 1/2″ x 18′

X-Siding Note: Custom widths available upon request with extended lead times. Skirtboard available in a nominal 5/4 (1″ actual) thickness

Stealth Corner Profiles

Product Nominal Actual Smooth (S4S) Embossed
Standard Stealth 5/4 x 4 x 18′ 1″ x 3 1/2″ x 18′
Standard Stealth 5/4 x 6 x 18′ 1″ x 5 1/2″ x 18′
Standard Stealth 5/4 x 8 x 18′ 1″ x 7 1/4″ x 18′

X-Siding Note: All Corners available in 10′, 20′ and custom 22′ lengths.

Additional Profiles

Product Actual Smooth (S4S) Embossed
Tapered PVC Starter 3/4″ x 4 1/2″ x 18′ NA
Galvanized Metal Starter 28 ga. x 10′ NA

XCEED Nail Hem Bracket & Screw Set

50 Pre-drilled stainless Steel Brackets
220 Stainless Steel Mounting Screws
  • Bracket & Screw System MUST be used at every butt joint
  • Estimated coverage area is 6 siding squares/box
  • Nail Hem Brackets required to maintain warranty

• 16’ lengths to allow for faster installs, reduce butt joints and have less waste.
• Siding produced to minimize cuts and waste due to nail slot locations. (Factory butt joints always ensure the 16” on center nail placement)
• More rigid and durable than traditional vinyl siding-Increased resistance to fire, wind and hail
• Lighter and less brittle than fiber cement siding-Approved for ground contact and no carcinogens when cutting
• Easy to install – Once the first course is level, installation is simple. Set the next panel into lock and move on.
• Colors developed using a ASA weather-able and HBU-resistant cap stock.

Questions About Installation?
View installation guide

Warranty Coverage
At VERSATEX, products are created from cellular PVC in a state-of-the-art manufacturing facility with the highest level of quality and feature a fully-transferable limited lifetime warranty. Regarding Canvas Series Products, VERSATEX warrants to the Consumer/Purchaser that the film laminate will not discolor beyond the manufacturer’s tolerances (≤ greyscale 3 – ISO 105-A02) for 12 years from the date of original purchase. Furthermore, VERSATEX warrants to the Consumer/Purchaser that the application of the film onto the underlying PVC substrate be free from manufacturing defects for 12 years from the date of original purchase. See full warranty details.

Installation Guides
XCEED Siding Installation Guide

Technical Resources
ACRI-SHIELD MAX 739-10 Series
Permanizer 769-10 Series

CADs
4 1/2″ XCEED Tapered Starter
4″ Stealth Trim
4″ XCEED Frieze Board
4″ XCEED Skirtboard
4” Stealth Corner
6” Stealth Corner
6” Stealth Trim
6” XCEED Band Board
6” XCEED FRIEZE BOARD
6” XCEED Skirtboard
8” XCEED Band Board
XCEED Galvanized Metal Starter
XCEED Lap Siding
XCEED Nail Hem Bracket

Literature
XCEED Siding Brochure
